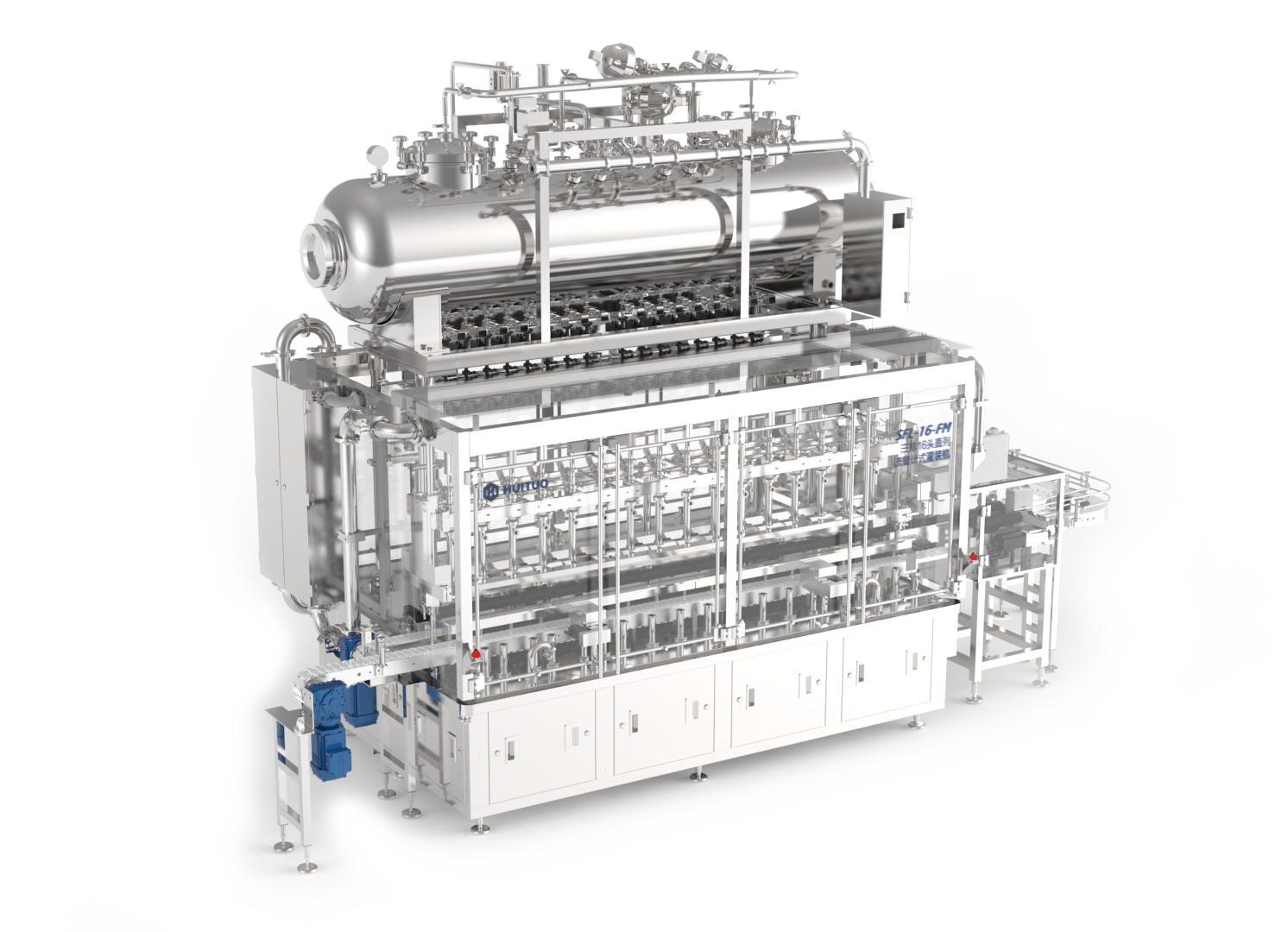

(1). Linear piston filling, 16 filling heads high efficiency with high production capacity around 6000b/h
(for 750ml foamy products ).
(2). PLC controlled. Easily connected with capping machine and labeling machine and implementing
(3). Two channel standard safety electric circuit to make sure equipments running safely.
(4). With AUTO-ID system. No bottle no filling.
(5). Servo drive piston, high-precision filling
(6). Adopting diving filling to avoid foamy and explosion.
(7). Eternal wear free measuring cylinder, long working life Pan plug seal with the function of self-compaction, maintenance free.
(1) Machine dimension: 2000mm(L)* 1200mm(W)*2500mm(H)
(2) Filling heads:Accorting to production capacity
(3) Filling range: Customized
(4) Diameter of bottle mouth: Customized
(5) Production capacity: 6000b/h(take 750ml foamy product as test) for 16 filling heads
(6) Filling Tolerance: Filling machine for volume ≤500ml----±1g
Filling machine for volume ≥500ml----±2g
(7) Power supply: AC380V,50Hz; AC220V,50Hz (customized)
(8) Air consumption:0.55-0.65 Mpa clean and stable compressed air
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets,accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD50.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
